- Color coded for both T568A and T568B installations
- Terminated using 110-type punch tool
- Supports both Cat5e and Cat6 cables
- Writable and erasable marking surfaces for each port
- Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
<
>

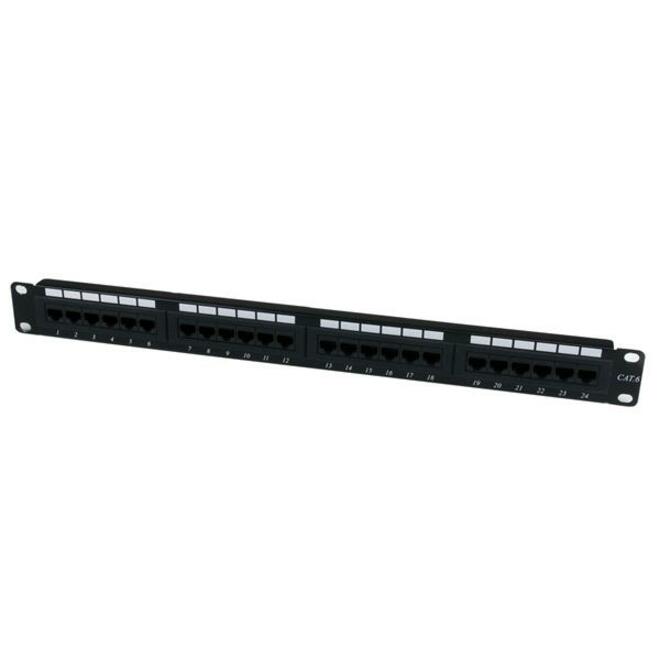

StarTech.com 24 Port 1U Rackmount Cat 6 110 Patch Panel
24 x RJ-45 - 24 Port(s) - 24 x RJ-45 - 24 x RJ-11 - 1U High - Black - 19" Wide - Rack-mountable
Product Code: STCC6PANEL24
Product Unit: Each
Contact customer service to check availability
Product Details
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | C6PANEL24 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 24 Port 1U Rackmount Cat 6 110 Patch Panel |
| Marketing Information |
The C6PANEL2424-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application. For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables.The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management. Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com's 2-year warranty. More from the Manufacturer |
| Packaged Quantity | 1 Each |
| Product Type | Network Patch Panel |
Interfaces/Ports
| Total Number of Ports | 24 |
| Number of Network (RJ-45) Ports | 24 |
| Number of RJ-11 Ports | 24 |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Compatible Rack Width | 19" |
| Height | 1.7" |
| Width | 19" |
| Depth | 1.3" |
| Weight (Approximate) | 1.28 lb |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Country of Origin | China |
Warranty
| Limited Warranty | 2 Year |
Description
