- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD| 1U height | 99 key full keyboard with numeric keypad + Trackpad | Supports VGA and USB | Integrated Power Supply
- MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF
- TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
- KVM Collection: Can be purchased with integrated 8-port (RKCONS1708K) or 16-port (RKCONS1716K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK.

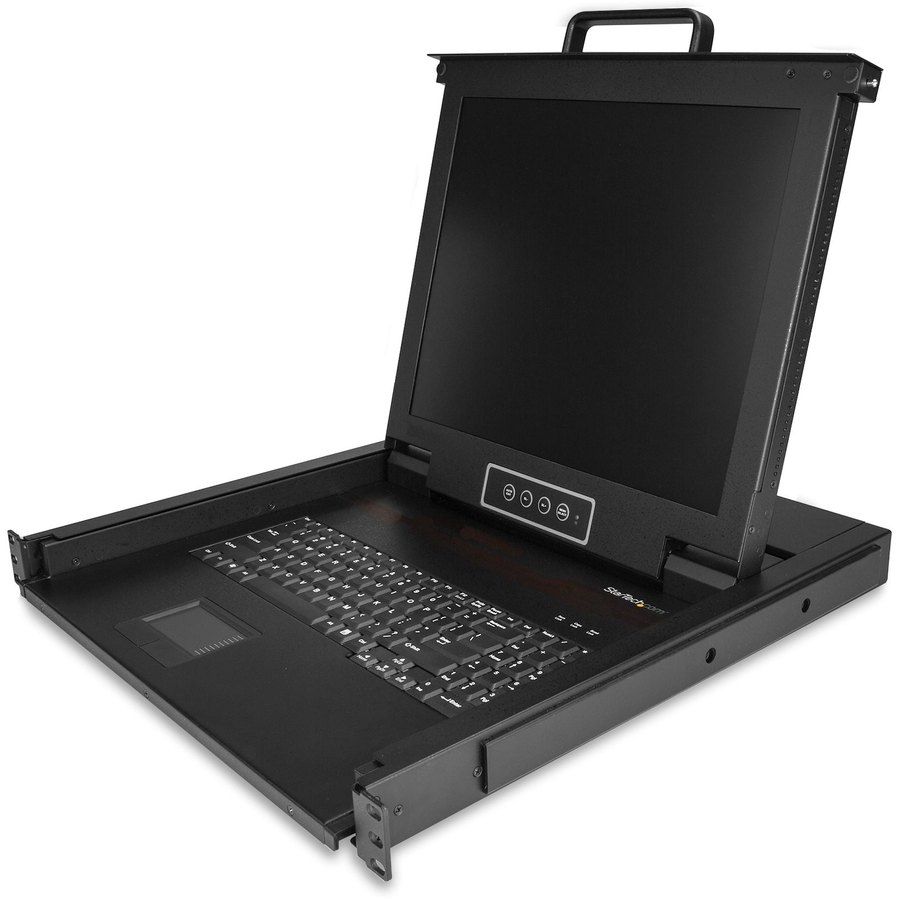

StarTech.com Single-Port Rackmount KVM Console with 17" Display
1 Computer(s) - 17" LCD - SXGA - 1280 x 1024USB - 1 x VGA - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - PC - Steel - Black
Product Details
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | RKCONS1701 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Single-Port Rackmount KVM Console with 17" Display |
| Marketing Information |
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space. An All-Inclusive Solution The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024. This single-port KVM console includes everything you need to set up right out of the box:
Simple System Integration The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure. StarTech.com Rack Consoles Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer |
| Packaged Quantity | 1 Each |
| Product Type | LCD Rack Console |
Technical Information
| KVM Switch | No |
| Number of Computers Supported | 1 |
| Device Type | LCD Rack Console |
Display & Graphics
| Screen Size | 17" |
| Display Screen Type | LCD |
| Screen Mode | SXGA |
| Screen Resolution | 1280 x 1024 |
Input Devices
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
Interfaces/Ports
| USB | Yes |
| VGA | Yes |
| Number of VGA Ports | 1 |
Power Description
| Input Voltage |
|
| Input Voltage Range | 100V AC to 240V AC |
| Power Consumption | 13 W |
| Input Current | 1.50 A |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.6" |
| Depth | 18.5" |
| Weight (Approximate) | 25.90 lb |
Miscellaneous
| Package Contents |
|
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Country of Origin | China |
Warranty
| Limited Warranty | 2 Year |
