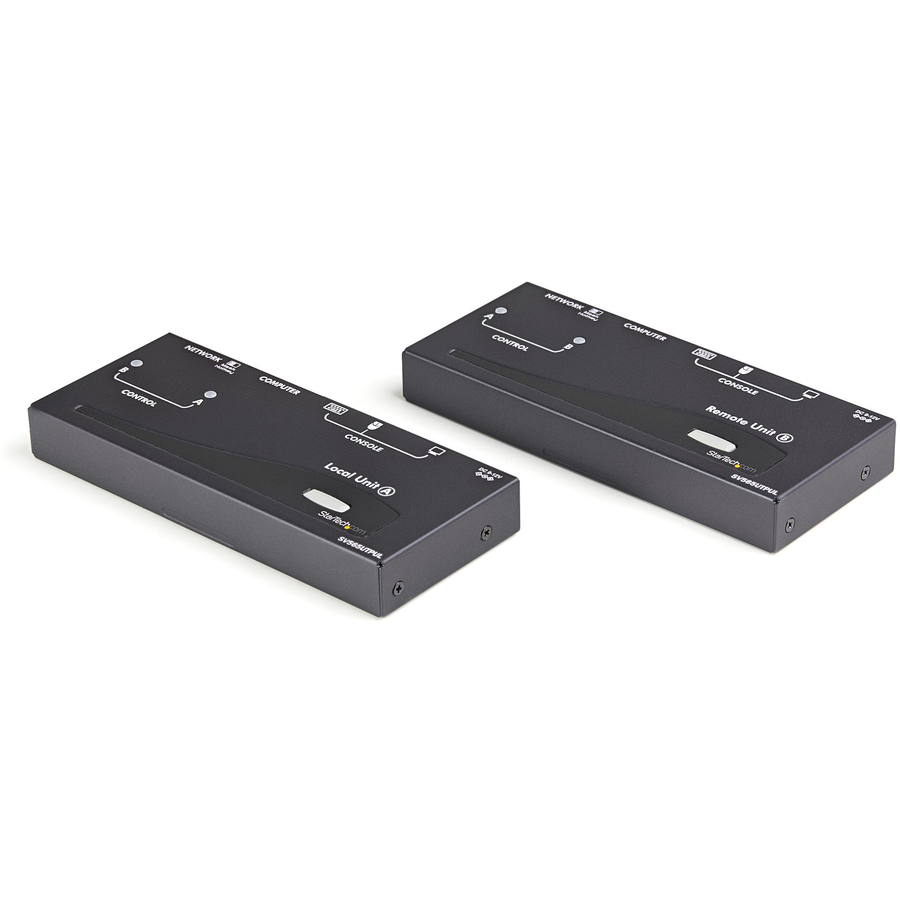

    StarTech.com USB VGA KVM Console Extender over Cat5 UTP 1000 ft

    2 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - 120 V AC, 240 V AC Input Voltage - Rack-mountable, Desktop - TAA Compliant

    Product Code: STCSV565UTPUL
    Product Unit: KT1
    Contact customer service to check availability
    Non-Returnable Product
    • High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA)
    • Kit includes both local and remote units
    • Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
    • USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
    • Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
    $550.54
    Add to Cart

Product Details

General Information

Manufacturer StarTech.com
Manufacturer Part Number SV565UTPUL
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name USB VGA KVM Console Extender over Cat5 UTP 1000 ft
Marketing Information

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.

You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

More from the Manufacturer

More from the Manufacturer
Packaged Quantity 1 Kit
Product Type KVM Console/Extender

Technical Information

Connectivity Technology Wired
KVM Technology Analog
Number of Computers Supported 2
Number of Local Users Supported 1
Number of Remote Users Supported 1
Maximum Operating Distance 984.25 ft

Video

Graphic Mode WUXGA
Maximum Video Resolution 1920 x 1200

Interfaces/Ports

Network (RJ-45) Yes
USB Yes
VGA Yes
Number of VGA Ports 2
Number of Network (RJ-45) Ports 2
Number of USB Ports 4

Power Description

Input Voltage
  • 120 V AC
  • 240 V AC
Input Voltage Range 110V AC to 240V AC
Power Consumption 18 W

Physical Characteristics

Color Family Black
Product Color Black
Form Factor
  • Rack-mountable
  • Desktop
Transmitter Height 0.80"
Transmitter Width 6.20"
Transmitter Depth 2.80"
Receiver Height 0.80"
Receiver Width 6.20"
Receiver Depth 2.80"
Transmitter Weight (Approximate) 1.37 lb
Receiver Weight (Approximate) 1.37 lb

Miscellaneous

Package Contents
  • 2 x KVM Extenders (1x Local, 1x Remote)
  • 2 x 2n1 USB VGA KVM Cables
  • 1 x Rubber Feet
  • 1 x Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
  • 1 x User Manual
Certifications & Standards
  • CE
  • FCC
Environmentally Friendly Yes
Country of Origin Taiwan
TAA Compliant Yes

Warranty

Limited Warranty 3 Year

Description

Accessories

Alternative Products

We are sorry but no alternatives are currently available, we are working on getting this back in stock as soon as possible.

Additional Documentation

Manufacturer-Brochure
User-Manual
